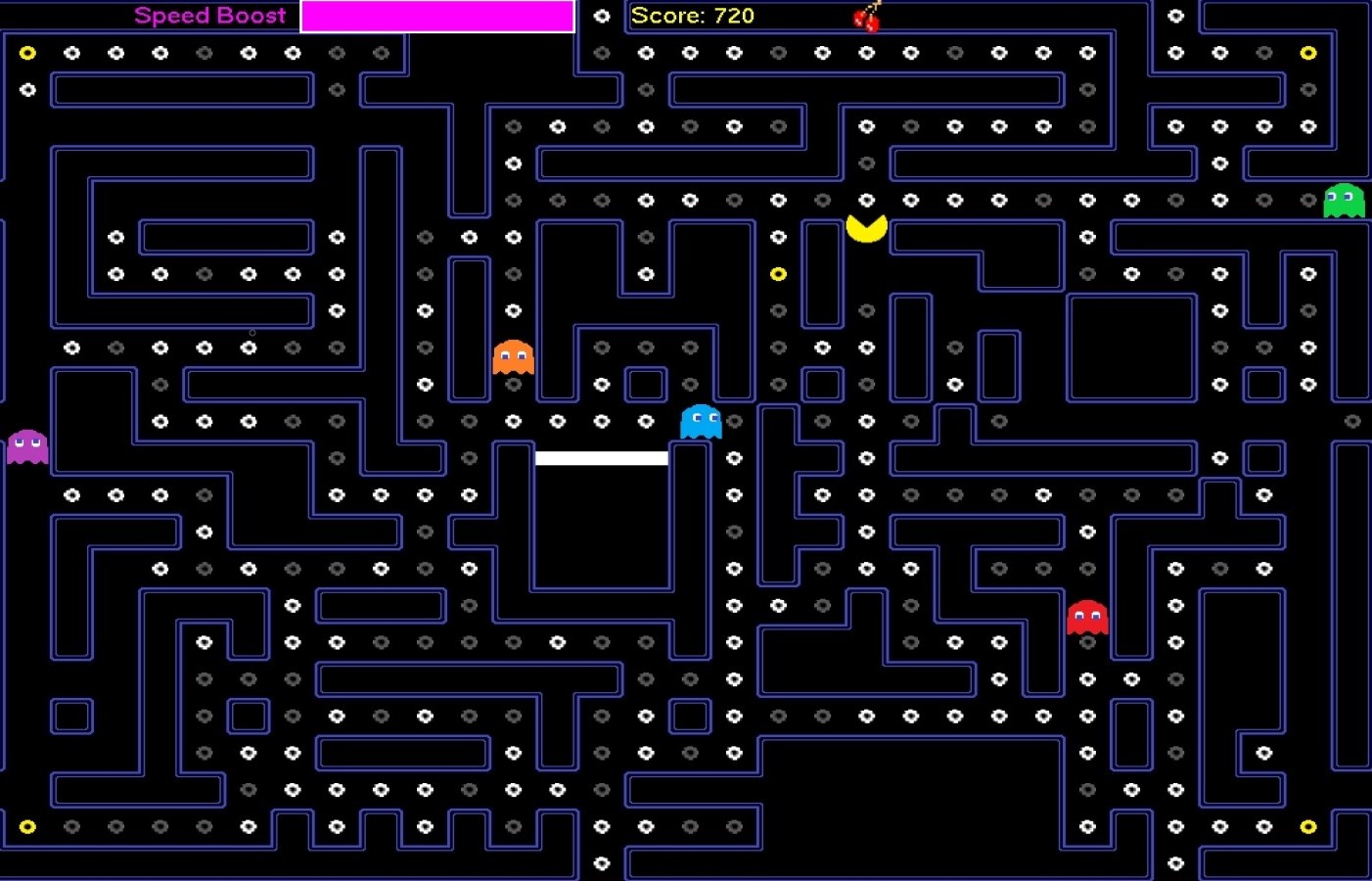

Pacman is a C++ project using S2D. It contains many of the feautres of the orignal Pacman game such as the ghosts, Pacman, Munchies, Cherries but also has a few of my own twists added to it. For example a Speed boost. The objective of the game is still the same - Collect all the munchies and don't die to the ghosts!
When the player collects a 'Powerup munchie' (gold munchie) it resets the 'ghostFrightTimer', 'frightCounter' and image 'sourcRect' (in the Y direction) for each ghost. Also activating the new texture and setting 'destructable' and 'ghostFright' to be true so when they are collided with they are destroyed.
if (_munchies[i]->type == "Powerup")
{
_menu->ghostFrightTimer = 0;
for (int i = 0; i < _menu->ghostCounter; i++)
{
_ghosts[i]->frightCounter = 0;
_ghosts[i]->sourceRect->Y = 0;
_ghosts[i]->texture = _menu->frightTexture;
_ghosts[i]->destructable = true;
}
_menu->ghostFright = true;
}
Calculate the position of each side of the wall using simple maths. The sides are then used in collision logic with various other sprites in the game.
bottom = _walls[i]->Position->Y + _walls[i]->sourceRect->Height;
left = _walls[i]->Position->X;
right = _walls[i]->Position->X + _walls[i]->sourceRect->Width;
top = _walls[i]->Position->Y;
centerX = _walls[i]->Position->X + _walls[i]->sourceRect->Width / 2;
centerY = _walls[i]->Position->Y + _walls[i]->sourceRect->Height / 2;
A sprite sheet is a set of smaller images in one big image in a table like format. After each frame the sourceRectX is updated to implement a moving animation for Pacman. The sourceRectY is updated depending on the direction its moving so the image is changed to match the direction Pacman is moving.
_pacman->SourceRect->X = _pacman->SourceRect->Width * _pacman->Frame;
if (_pacman->Direction == 1)
{
_pacman->SourceRect->Y = 96;
}
if (_pacman->Direction == 3)
{
_pacman->SourceRect->Y = 64;
}
if (_pacman->Direction == 2)
{
_pacman->SourceRect->Y = 32;
}
if (_pacman->Direction == 0)
{
_pacman->SourceRect->Y = 128;
}
else
{
_pacman->SourceRect->X = 0;
}
When the pause key is lifted it sets 'pKeyDown' to false. When the pause key is pressed and 'pKeyDown' is false it sets 'paused' boolean to opposite of the currenty state its in; if its unpaused, it pauses, and if paused, it unpauses. The 'pKeyDown' boolean is used to stop the menu flickering between states when the user is pressing the pause key.
void Pacman::CheckPaused(Input::KeyboardState* state, Input::Keys pauseKey)
{
if (state->IsKeyUp(pauseKey))
{
_menu->pKeyDown = false;
}
if (state->IsKeyDown(pauseKey) && !_menu->pKeyDown)
{
_menu->pKeyDown = true;
_menu->paused = !_menu->paused;
}
}
As it is a University assigment I recieved a mark for hitting certain criteria. Here is a breakdown of the marks;
Skeleton code extended to enable Monster movement in all 4 directions using arrow keys or WASD. Monster confined to game board in all 4 directions or appropriate wrapping.
Player animation implemented so player faces the direction of movement and is animated.
Sounds play when in-game events occur. For example - sprite hits/wraps through a wall, collecting munchies, death etc.
Different 2D images used for the collectible items. 2 or more items should be used and should be animated.
Larger variety of sprites beyond the minimum requirements listed above. Walking / explosion animations.
User interaction, feedback and sounds beyond the minimal application, responds to events such as collisions, gameplay and scoring.
For example: * State machine * Other levels * High-score table.
A brief description of the game concept with accompanying screenshots. Keyboard controls etc.
A video capture of your game in action. Should highlight all features mentioned in the rubric.
